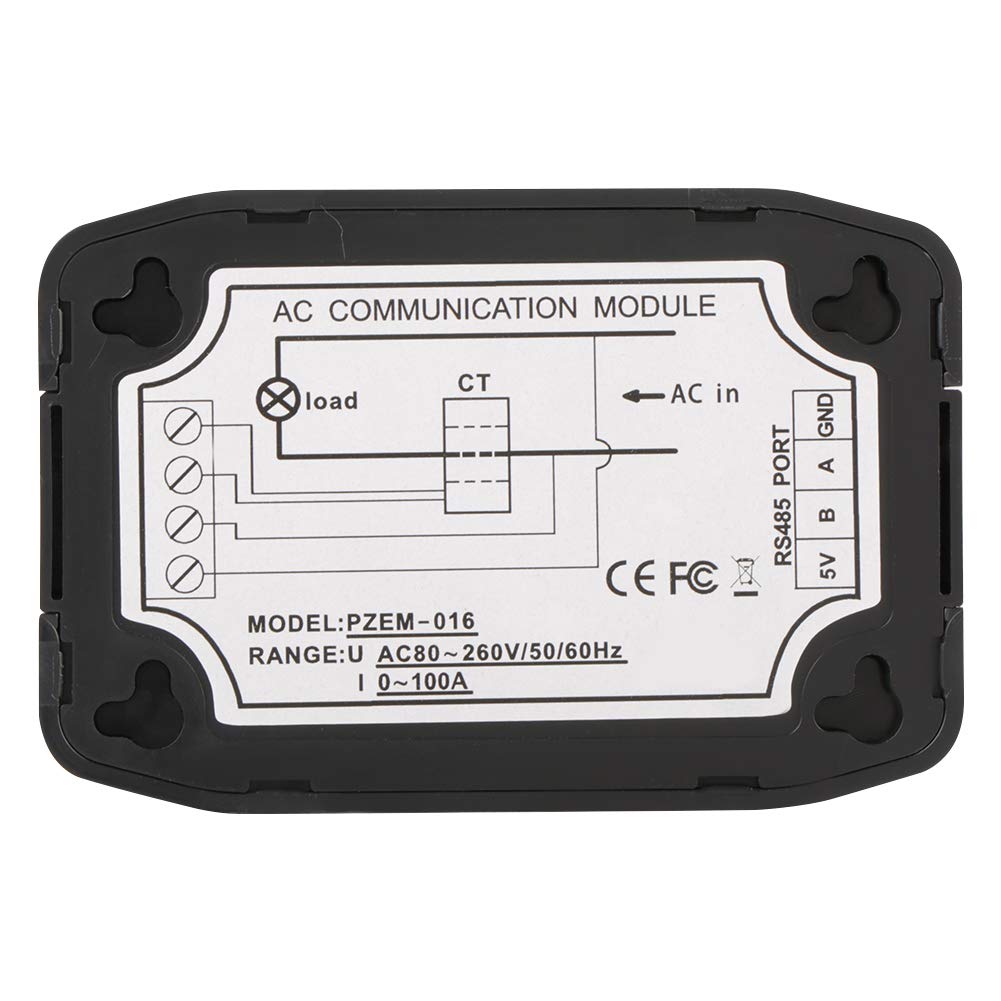

UART to RS485 Energy Meter Voltmeter Ammeter Monitor Voltage Current Power Frequency Power Factor Multifunction Tester(Split CT 100A PZEM-016)

Specifications: VoltageMeasuring range:80~260VResolution: 0.1VMeasurement accuracy: 0.5%CurrentMeasuring range: 0~100AStarting measure current: 0.02AResolution: 0.001AMeasurement accuracy: 0.5%Active powerMeasuring range: 0~23kWStarting measure power: 0.4WResolution: 0.1WDisplay format:When the data is ＜1000W, it display one decimal, such as: .9WWhen the data is ≥1000W, it display only integer, such as: 1000WMeasurement accuracy: 0.5%Power factorMeasuring range: 0.00~1.00Resolution: 0.01Measurement accuracy: 1%FrequencyMeasuring range: 45Hz~65HzResolution: 0.1HzMeasurement accuracy: 0.5%Active energyMeasuring range: 0~9999.99kWhResolution: 1WhMeasurement accuracy: 0.5%Display format:When the data is ＜10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9WhWhen the data is ≥10kWh, the display unit is kWh, such as: 9.99kWhReset energy: use software to reset.Communication interface: RS485 interface Size:90 x 60.5mm / 3.54 x 2.38inWeight: Approx.118~154gPackage includes: Type1,Type2,Type3,Type4 (Optional)Type1: 1*Meter+1* Closed type CTType2: 1*Meter+ 1*open type CTType3: 1*Meter+ 1*Closed type CT+ 1*USB to 485Type4: 1*Meter+ 1*open type CT+ 1*USB to 485

• SPECIFICATIONS: The multi function meter physical layer adopts UART to RS485 communication interface, with baud rate of 9,600, 8-bit data bits, 1-bit stop bits and no verification
• OVER POWER ALARM: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm. Amperage voltage is practical and convenient
• FUNCTION: This multi-function meter can measure voltage, current, power, power, frequency, power factor, can meet your using requirement

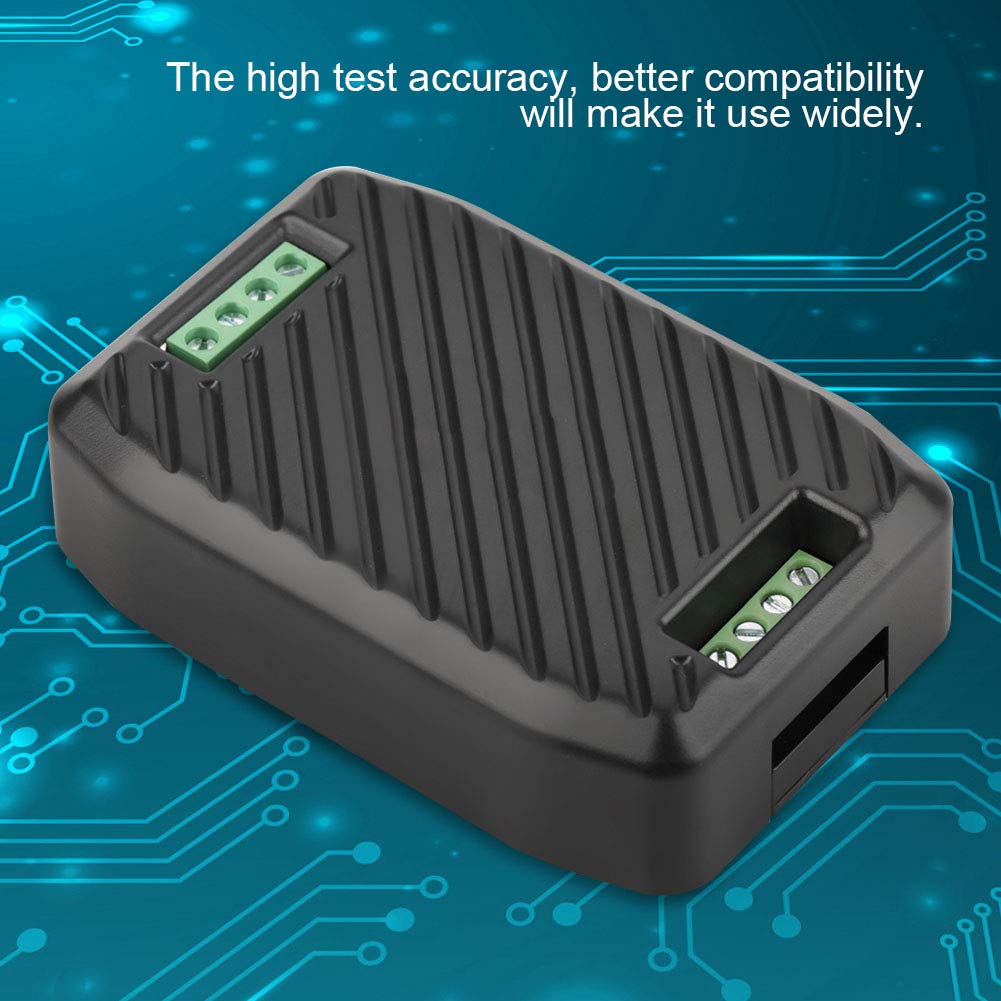

• Volt amp tester has high test accuracy, better compatibility will make it use widely
• FEATURES: Voltage current meter can display six measurement parameters on the computer when communicate through the software, reset energy is use software to reset
